Crown removal is a common yet often challenging procedure in restorative and prosthodontic dentistry. Whether replacing a failing restoration or accessing underlying tooth structure for retreatment, removing an existing crown efficiently and safely is critical to preserving tooth integrity and minimizing chair time. The Mr. Bur Crown Cutter Kit offers clinicians a streamlined, precision-driven solution for crown sectioning and removal across a variety of materials.
This blog explores the clinical applications of the Crown Cutter Kit, highlights its unique components, and provides guidance on how to achieve consistent and efficient outcomes in crown removal procedures.
Why Precision Matters in Crown Removal
Traditional methods of crown removal using generic burs or forceps can be time-consuming, traumatic to surrounding tissues, and may risk damaging the tooth structure underneath. Overheating, bur wear, and loss of control can complicate the process, especially with today's high-strength materials like zirconia and lithium disilicate.
The Mr. Bur Crown Cutter Kit is engineered to address these concerns with high-performance burs and a specially designed instrument for safe and controlled removal of all types of crowns.

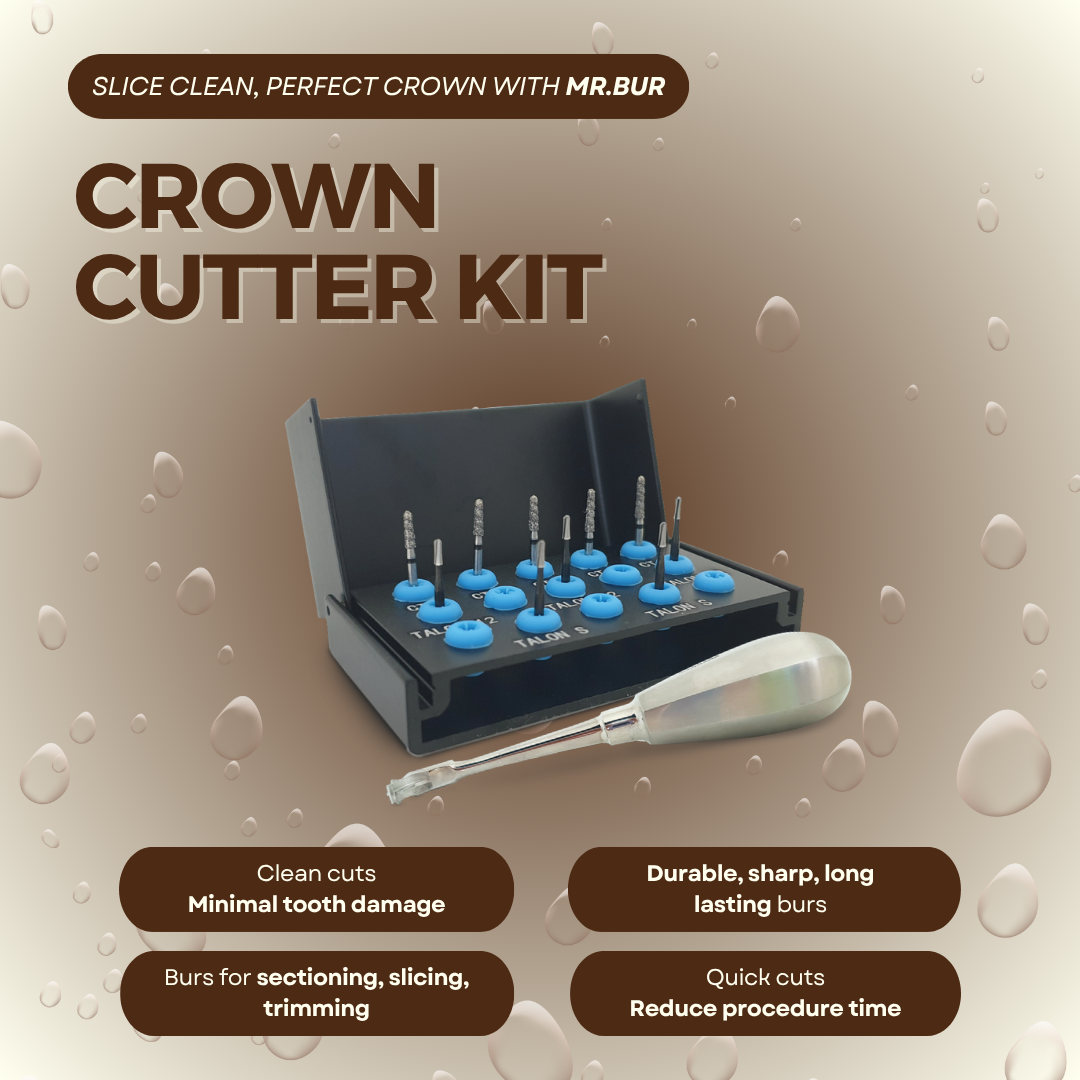

What’s Included in the Mr. Bur Crown Cutter Kit?
The kit comprises:
-
CT-1 Crown Cutter Bur
-
CT-2 Crown Cutter Bur
-
Talon 12 (Trihawk Bur)
-
Crown Remover Instrument
Each instrument plays a distinct role in optimizing sectioning efficiency for different types of restorations.

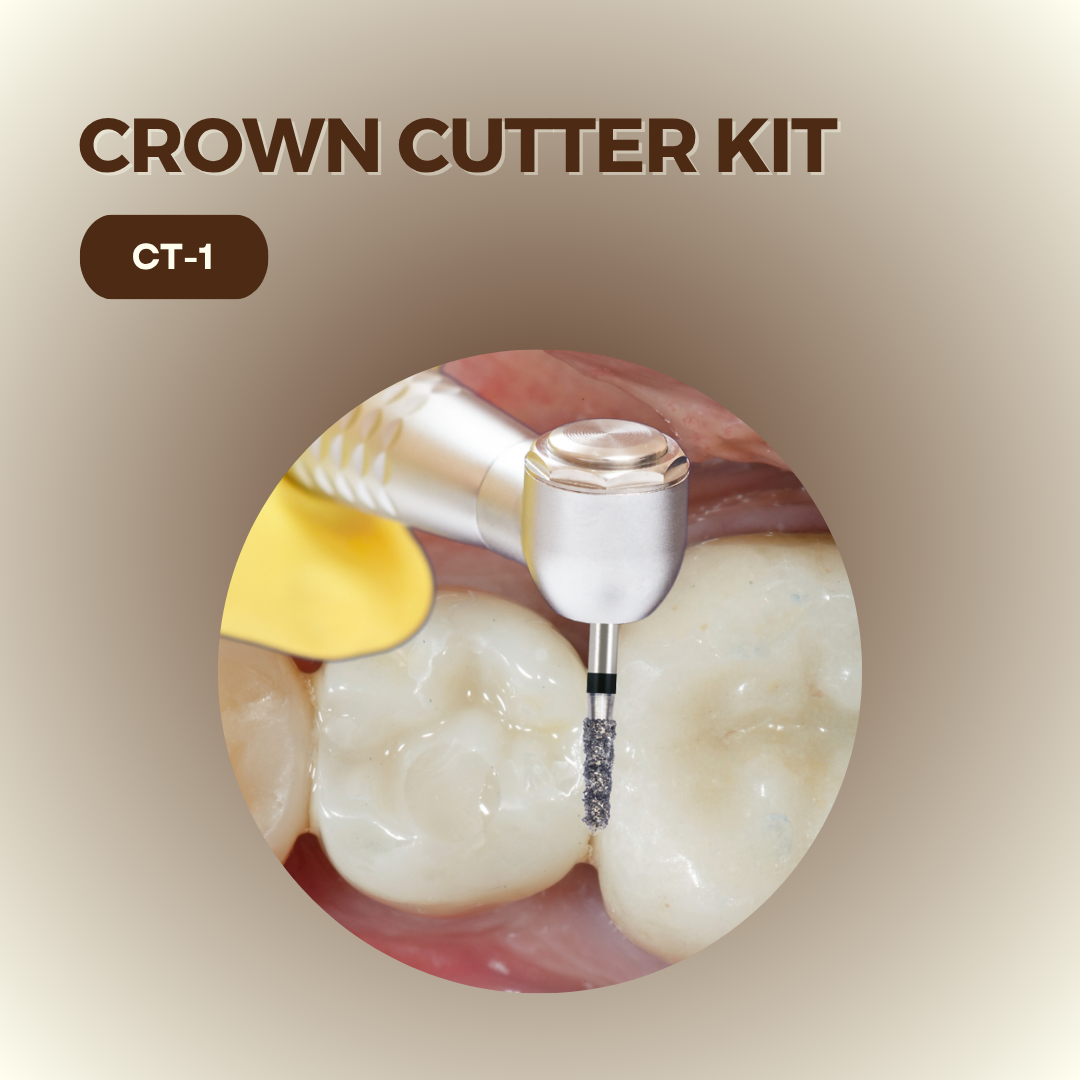

1. CT-1 Hybrid Twister Bur
-
Diameter: 1.8 mm
-
Working Length: 6.0 mm
-
Total Length: 20.0 mm
Use Case: Short-length, high-stability zirconia cutting bur. Ideal for anterior restorations or shallow cuts.
Clinical Advantage: Its hybrid blade design allows deep ceramic penetration while maintaining tactile control in sensitive zones.

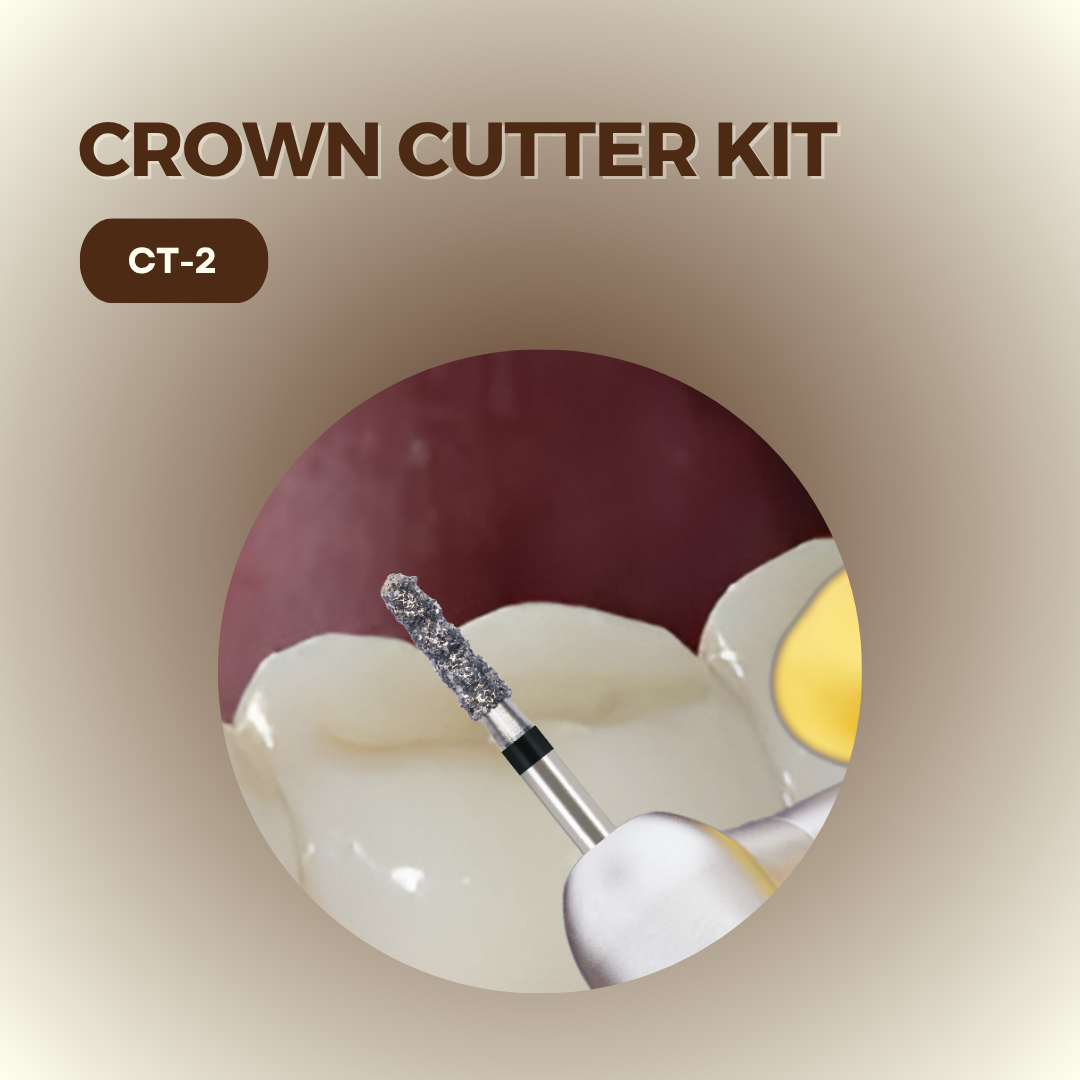

2. CT-2 Hybrid Twister Bur
-
Diameter: 1.8 mm
-
Working Length: 8.0 mm
-
Total Length: 21.0 mm
Use Case: Extended working length for deeper cuts, particularly suitable for posterior zirconia or thick multi-surface restorations.
Clinical Advantage: Allows clinicians to complete full crown sectioning with fewer repositioning movements and greater procedural speed.

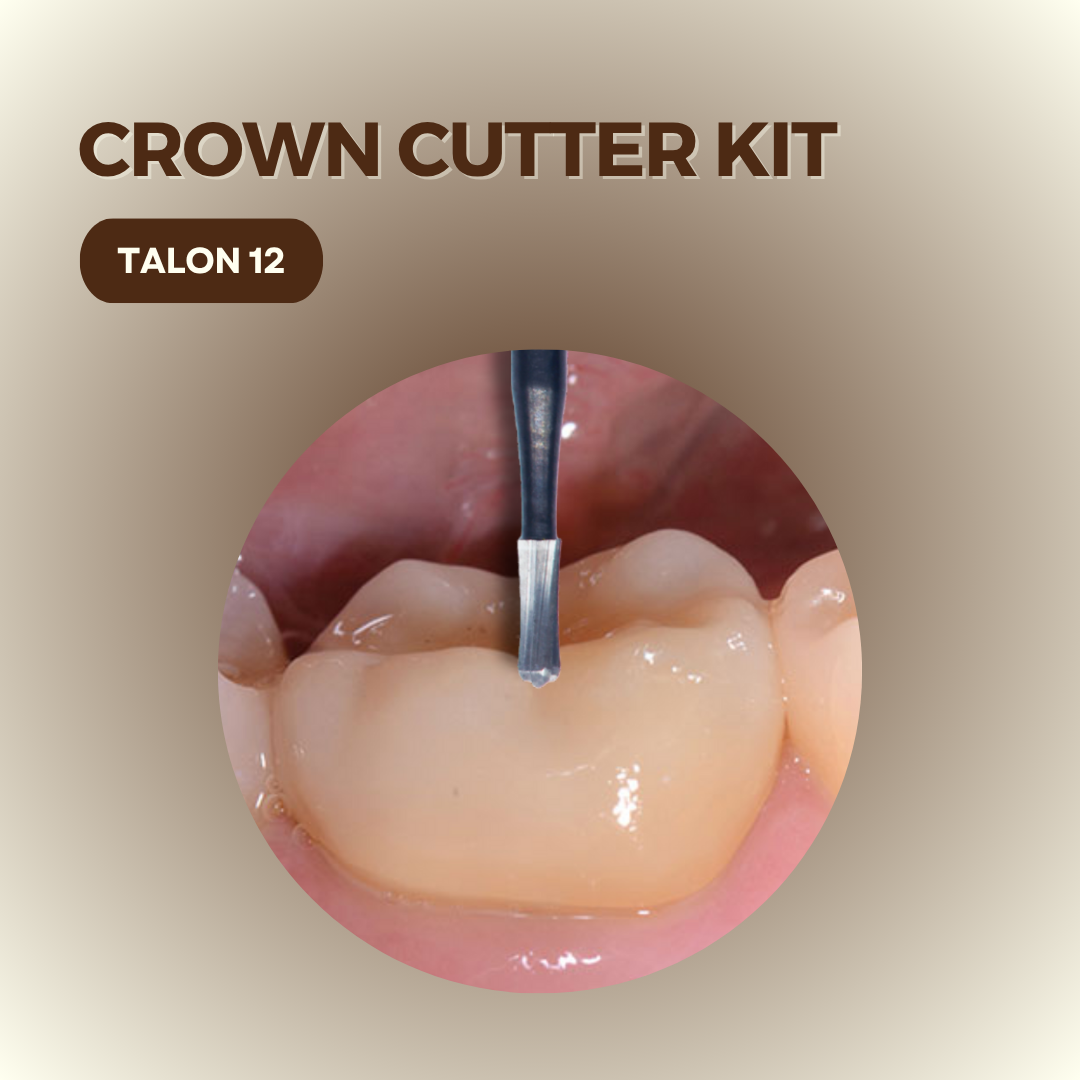

3. Talon 12 (Trihawk Bur)
-
Type: High-speed carbide bur
-
Design: Multi-fluted, tapered tip with reinforced shank
Use Case: Efficiently sections PFM, lithium disilicate (e.max), full metal, and veneer restorations.
Clinical Advantage: Combines rapid metal-cutting capabilities with precision in ceramic layers. Its pointed tip improves access at the occlusal surface or margin lines, making it a go-to bur for layered restorations.

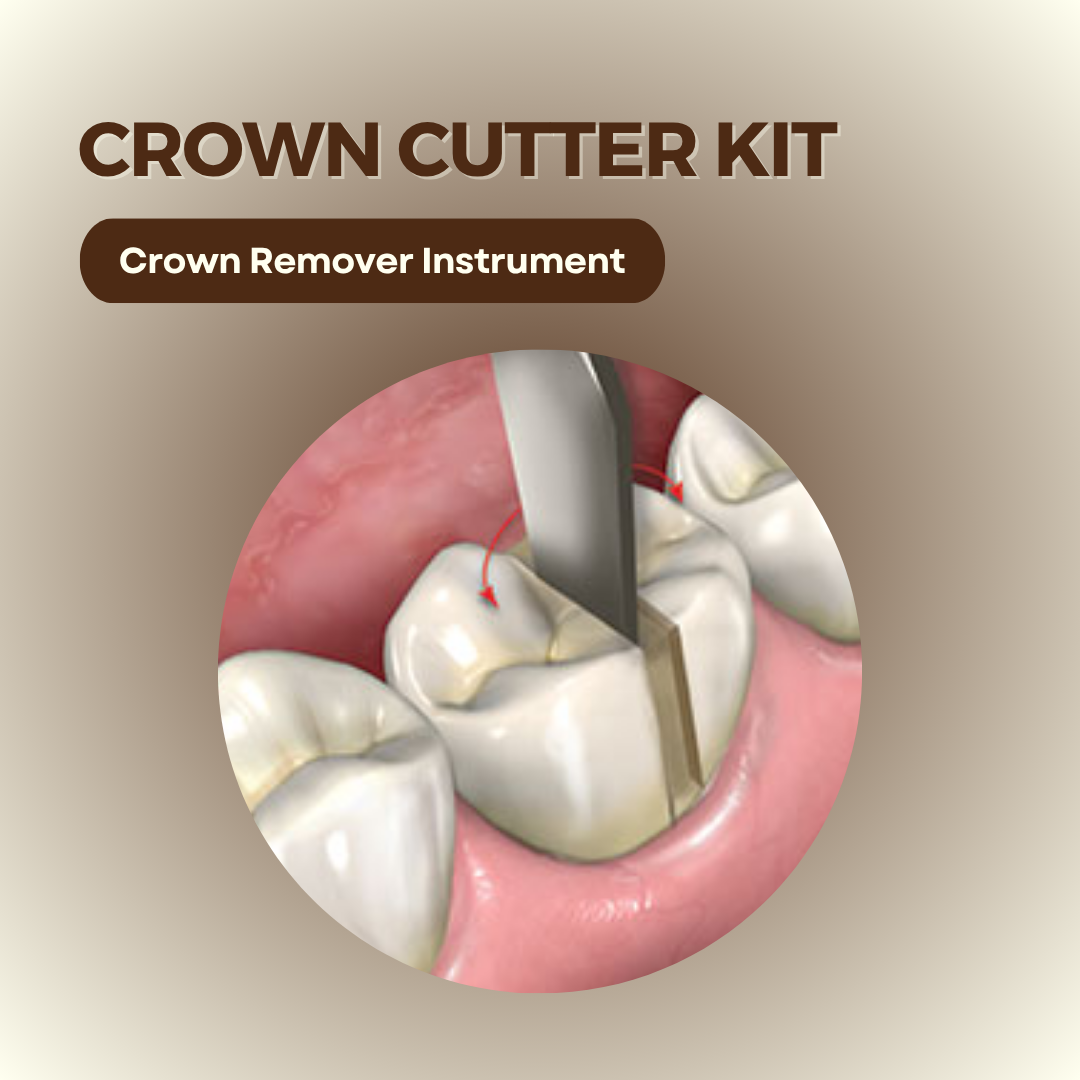

4. Crown Removal Instrument
-
Purpose: Assists in separating crown segments after bur sectioning.
-
Feature: Designed to gently disengage the crown from the tooth without excessive force.
Crown Materials and Bur Selection Guide
The success of crown removal depends heavily on selecting the right bur for the right crown material. Here's how each bur in the Mr. Bur Crown Cutter Kit performs across different clinical scenarios:
|
Crown Type |
Material Description |
Recommended Bur |
Why |
|
Zirconia Crowns |
Monolithic or layered high-strength ceramic |
CT-1 / CT-2 |
Hybrid Twister burs provide controlled penetration with reduced vibration. |
|
Lithium Disilicate (E-MEX) |
High-strength glass ceramic |
Talon 12 |
Trihawk geometry cuts smoothly through dense glass-ceramic composite. |
|
Porcelain-Fused-to-Metal (PFM) |
Porcelain outer shell fused to metal core |
Talon 12 |
Handles both ceramic and metallic layers without bur chipping. |
|
Full Metal Crowns (Gold/Alloy) |
Medium-hard alloys, gold, or non-precious metal |
Talon 12 |
Aggressive carbide flutes provide quick and clean cuts through dense metal. |
|
Temporary Acrylic Crowns |
Soft resin-based provisional materials |
CT-1 |
Shorter length and controlled depth ideal for soft materials. |
|
Resin Nano-Ceramic Crowns |
CAD/CAM hybrid materials (e.g., Lava Ultimate) |
CT-2 |
Longer bur handles composite density and multiple thickness zones. |
|
Veneers (Porcelain or E-MEX) |
Thin anterior ceramic restorations |
Talon 12 |
Tapered tip enables safe separation without damaging adjacent enamel. |
Clinical Benefits of the Mr. Bur Crown Cutter Kit
-
Reduced Chair Time: Section crowns quickly with less heat generation and fewer repositioning efforts.
-
Minimized Patient Discomfort: Efficient cuts translate into shorter procedures and reduced noise/vibration.
-
Precision Cutting: Control over depth and angulation ensures conservative tooth preparation during removal.
-
Multi-Material Versatility: The kit covers the full spectrum of clinical needs, from zirconia to layered PFMs and temporaries.
Elevate Your Crown Removal Efficiency
Crown removal doesn’t have to be time-consuming or technique-sensitive, not when you have the right tools. With the Mr. Bur Crown Cutter Kit, you get purpose-built burs that adapt to a range of crown materials and clinical scenarios.
Whether you’re dealing with zirconia’s toughness or the dual-layer resistance of PFMs, this kit empowers you to perform clean, efficient crown sectioning with confidence.
